Working people make mistakes, some people do
never make mistakes!
I work to live,
my boss thinks I live to work!
Using the JL
instruction (sort of CASE instruction) u can make the fastes step
program for a S7 PLC. (don't now if instruction exist in other PLC's.)
This methode has probaly a maximum cycletime of 25 STL
instructions!(STL code)
(Using the formula: 10 instructions + amount of steps (the CASE
statement) + the max. conditions between steps + the max. actions in a
step.)
download awl source (STL text file)
Symbol table:
| fast step program | FB 10 | FB 10 | Sample Fast Step program using sort of case statement (JL) |
| fast step FBD/LD | FB 10 | FB 10 | Sample Fast Step program in FBD/LD using JL |

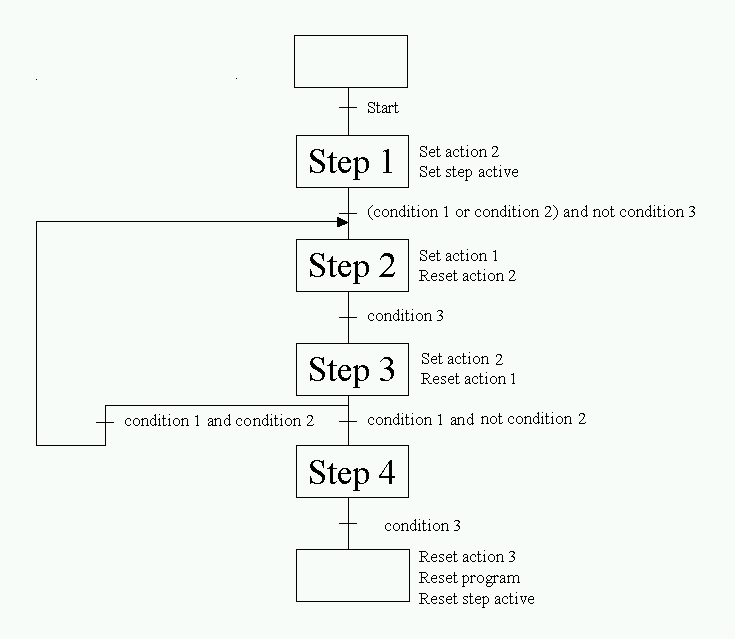

The flowchart to be converted:
Can be converted to the next program:
